Proven Fuel-Saving Technology for Grain Drying Chores.

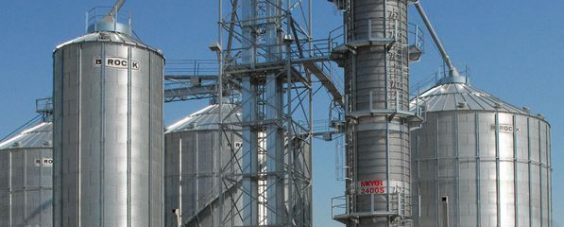

For continuous flow grain drying, Brock’s MEYER ENERGY MISER® Tower Grain Dryer provides proven fuel-efficient technology you can count on for drying duties. This Brock dryer offers capacities ranging from 1,000 to 2,650 bushels per hour with five points of moisture removal.
Brock’s line of tower dryers also provides the advantage of being able to use height as an option for adding drying capacity without increasing the dryer’s ground footprint in a facility.
All MEYER ENERGY MISER Tower Grain Dryers utilize Multi-Mode Drying and you can choose:
- • Full heat drying for maximum capacity through the dryer.
- • Pressure heat & suction cooling for max. efficiency (saves up to 25% in fuel costs).
- • Pressure heat with pressure cooling for crops where heat recycling is not desired.
These dryers can handle:
- • Standard grains
- • Sensitive grains
- • Volatile grains
- • Small grains (with the use of optional .062-inch perforation galvanized screens).
Few dryers can handle this wide variety of grains without having to make time-consuming physical modifications to the dryer.
- • Wet grain garner bin. Incoming grain is buffered in the dryer’s garner area for even distribution to the drying columns.
- • Narrower columns at the top. The upper 22% of the MEYER ENERGY MISER® Tower Dryer has been designed with a 10-inch wide grain column to allow more air flow through the wettest grain to start the drying process sooner. As a result of this narrower column, fuel efficiency is improved as well as drying capacity. The remainder of the dryer has a 12-inch wide column to allow saturation of the heated air passing through the grain.
- • Stainless steel screens. Wall screens are standard .094-inch perforation stainless steel outside and .078-inch perforation galvanized steel inside. Optional .078-inch perforation stainless steel outside screens are available to confine particulates for cleaner dryer operations. Optional .062-inch perforation galvanized screens are available for small grains.
- • Grain quality option. A special patented MOISTURE EQUALIZER® System is available for MEYER ENERGY MISER Tower Dryers where users are striving for increased test weight and grain quality.
- • Double-inlet centrifugal fans. Using industrial-grade, double-wide/double-inlet (DWDI) centrifugal wheels for quiet operation, this method of delivery promotes uniform, efficient movement of the heated air. The twin-fan unit is accessible from the ground level for easy maintenance if needed.
- • Unobstructed grain columns. Grain entering the MEYER ENERGY MISER Tower Dryer has an unobstructed gravity flow to the bottom of the tower. All inside body wall sheets are smooth with no bolts or nuts extending into the tower. Fresh air along with electrical conduits and gas piping enter at the bottom of the dryer and not through the grain columns.
- • Full flame-wall burner. Brock’s “full flame-wall” burner provides a generous flame surface and distributes heat evenly to the drying air. This aerodynamic, fuel-efficient burner provides uniform plenum temperatures to help maintain top grain quality. An all-stainless steel burner is standard on the MEYER 2650S and optional on other MEYER Dryer models.
- • Steeping section. A steeping section at the base of the heat plenum allows the grain moisture and temperature to equalize before cooling. This steeping period helps to minimize stress cracking in the grain for improved kernel quality.
- • Self-cleaning operation. The area at the base of the heat plenum has fines tubes installed in the corners of the plenum divider and the tubes extend down to attach to the full-floor air seal. Particulate matter is forced down these tubes into the discharging grain by static pressure to provide for cleaner dryer operation.
- • Gentle grain unloading system. Brock’s advanced Circular Drag Grain Unloading System (patented) evenly meters the grain from the grain columns and gently delivers it to the unloading point at the perimeter of the dryer. Using a variable-speed motor, the unloading system’s speed can be automatically adjusted to allow for moisture variations in the incoming wet grain.
- • Advanced controls. Brock’s advanced QUANTUM® Dryer Controller is standard and offers exceptional easy-to-use dryer automation for total dryer management. The QUANTUM is unique in accurately controlling final grain moisture by measuring incoming and outgoing moisture.
- • Control cabinet. Electrical components are housed in a dust-free, weatherproof control cabinet mounted on the front of the dryer. The panel is constructed of 12 gauge steel and is over-sized to accommodate control component expansion.
- • Sturdy construction. The cylindrical structure of the MEYER ENERGY MISER® Tower Grain Dryer is strong and efficient. Quarter-inch thick square steel legs are welded to the lower frame of the dryer to insure a rigid, stable substructure for the dryer’s tower and to withstand wind loads. Dryer leg extensions are available and can be easily installed as needed for added clearance under the dryer.
- • Factory pre-assembled. For U.S. and Canadian customers, Brock’s MEYER ENERGY MISER Tower Dryers are factory pre-assembled and tested before shipment to insure maximum quality and trouble-free operation. Installation time is reduced because of pre-assembly.
- • Fuels. Choose natural gas (NG) or liquefied petroleum gas (LP).
