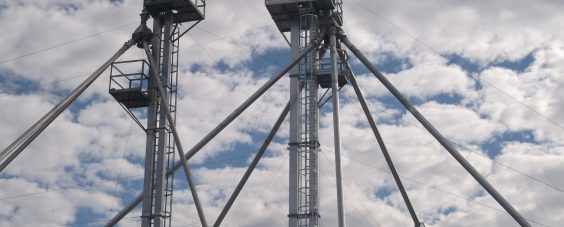

RAD Bucket Elevators


All RAD grain Elevators are made with corrosion-resistant galvanized steel, are solid and of durable construction.  The drive and walkway are pre-assembled for easy installation and a wide range of discharge spouts are available for any type of environment.

150 to 15 000 bushels/hour:

PNG - 17.9 kb

    ELEVATOR HEAD

PNG - 94.1 kb
  • •  3D design and CNC machining
  • •  10 – 14 ga galvanized steel
  • •  Adjustable Pillow block roller bearings
  • •  Inspection door on each side
  • •  Dirt protection on the pulley shaft
  • •  Easily accessible head hood
  • •  Optional abrasion-resistant composite coating (Rhino)
  • •  Dodge drive and bearings with backstops included

    ELEVATOR LEG

PNG - 110.2 kb
  • •  3D design and CNC machining
  • •  Bolted 10 – 16 ga galvanized steel
  • •  Leg casing with inspection door
  • •  Included : PVG belt, rubber model available
  • •  Heavy-duty plastic buckets







ELEVATOR BOOT

PNG - 103.2 kb
  • •  3D design and CNC machining
  • •  8-14 ga galvanized steel
  • •  Heavy-duty ball bearing pillow blocks
  • •  Belt tension adjuster improves belt’s traction and life
  • •  Self-cleaning and adjustable boot drum
  • •  Dirt protection on the pulley shaft
  • •  Self-cleaning foot available on request
  • •  Clean-out slides on the boot
